Short on time? Of the 13 dust collectors and dust collection systems on this list, this is the one I'd buy.
JET Cyclone Dust Collector JCDC-3
Unbeatable cyclone performance, 1,963 CFM, and JET’s legendary 5-year warranty make it the one I reach for every time serious work is on the agenda.
- Budget pick Shop Fox W1685
- Also recommended Laguna C|Flux:3
If you’ve ever finished a long sanding session only to find your entire shop coated in a fine layer of dust (on the tools, on the workbench, in your lungs) you already know why the best dust collector you can fit in your shop, and the dust collection system around it, is non-negotiable. I’ve spent years testing these machines in real shop conditions, and I can tell you firsthand: the right dust collector doesn’t just keep things tidy, it protects your health and makes every single session more enjoyable. When it comes to sanding especially, you need serious filtration: fine sanding dust consists of particles well below 10 microns, and a standard 30-micron bag simply lets them float right back into your breathing zone. In this guide, I’ve rounded up the best dust collectors of 2026 across every budget and shop size, so you can find the perfect match without wading through spec sheets for hours. A big thanks to my friend Rob for once again lending me a few machines I didn’t have: you’re the best!
Best Dust Collectors Comparison
Here’s a quick side-by-side of every dust collector I’ve reviewed below, so you can compare specs at a glance before diving into the full write-ups.
| Product | ⭐ JET JCDC-3 🏆 EDITOR’S CHOICE |
JET DC-1200VX-BK1 | Shop Fox W1685 | POWERTEC DC5371 | Shop Fox W1727 | Grizzly G0441 | Shop Fox W1869 | JET JCDC-2 | JET DC-1100VX-5M | Powermatic PM1900TX-BK1 | Grizzly G0672 | Powermatic PM1900TX-CK1 | Laguna C|Flux:3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Price | $$$$ | $$ | $$ | $ | $ | $$$$ | $$$$ | $$$$ | $$ | $$$ | $$$$ | $$$$ | $$$$ |
| Motor | 3 HP | 2 HP | 1-1/2 HP | 1 HP | 1 HP | 3 HP | 3 HP | 2 HP | 1.5 HP | 3 HP | 5 HP | 3 HP | 3 HP |
| CFM | 1,963 | 1,200 | 1,280 | 560 | 800 | 1,654 | 1,941 | 1,538 | 1,100 | 1,754 | 3,961 | 1,782 | 2,718 max |
| Filtration | 2 micron | 30 micron | 2.5 micron | 1 micron | 2.5 micron | 0.2 to 2 micron | 1 micron | 2 micron | 5 micron | 30 micron | 2.5 micron | 2 micron | 1 micron |
| Type | Cyclone | Single bag | Single bag | Wall mount | Single bag | Cyclone | Cyclone | Cyclone | Single bag | Double bag | Double bag | Double bag | Cyclone |
| Intakes | 3 × 4″ / 8″ | 2 × 4″ / 6″ | 2 × 4″ / 6″ | 1 × 4″ | 1 × 4″ | 8″ (multi) | 3 × 4″ / 8″ | - | 2 × 4″ / 6″ | 3 × 4″ / 8″ | 4 × 10″ | 3 × 4″ / 8″ | 3 × 4″ / 8″ |
| Warranty | 5 year | 5 year | 2 year | - | 2 year | 1 year | 2 year | 5 year | 5 year | 5 year | 1 year | 5 year | - |
| Availability | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon | Check price on Amazon |
Price tiers are market bands from the Amazon listings on October 1, 2026: $ under $500, $$ $500 to $1,000, $$$ $1,000 to $2,000, $$$$ over $2,000. CFM is each maker’s own figure, and makers don’t all measure it the same way: see how CFM is rated before you compare them.
Key takeaways
- My top pick overall is the JET Cyclone Dust Collector JCDC-3: best-in-class cyclone performance, 1,963 CFM, and a flawless 5-year warranty make it the ultimate buy-once machine for serious shops.
- Best value for money: the Shop Fox W1685, 1,280 CFM and 2.5-micron filtration on a standard 110V outlet, at a genuinely accessible price point.
- Best single-bag: the JET DC-1200VX-BK1, Vortex Cone technology and a 2 HP motor with a 30-micron bag on a 230V circuit, backed by JET’s 5-year warranty.
- Best cyclone for a larger ducted shop: the Laguna C|Flux:3, a 3 HP cyclone with a 1-micron cartridge, a 46-gallon drum and the highest rated airflow of the cyclones here.
- Every cyclone on this list needs a 220V or 230V circuit. On a standard 115V outlet, choose a single-stage unit or see my small shop picks.
💡 Pro Tip
When choosing a dust collector for sanding work specifically, prioritize filtration quality over raw CFM. A 2-micron or finer filter is strongly recommended: fine sanding dust consists of particles well below 10 microns that standard 30-micron bags simply can’t capture. Your lungs will thank you. If you want more guidance on sanding technique and dust management, check out my guide on how to sand a table.
Best Dust Collector Reviews
Below I’ve written up full, in-depth reviews for every machine in this lineup, grouped by design: cyclone dust collectors first, then single-stage collectors, from 115V portables to a 5 HP industrial unit. Specs come from each manufacturer’s manual or product page, linked in each card.
Best Cyclone Dust Collectors
A cyclone dust collector spins the incoming air so that chips and most of the dust drop into a drum before the air ever reaches the filter. The filter only sees the fine fraction, so it loads up more slowly and the machine holds on to more of its suction through a long session. That is why most people who plan a full dust collection system, with ducting to several machines, end up with a cyclone. The costs are price, height and wiring: every cyclone below needs a 220V or 230V circuit, the three 3 HP machines with published circuit specs (Grizzly, Laguna and Shop Fox) all call for a 30 A breaker, and the Laguna stands 89 inches tall. Here are my top picks in this category for 2026.
Here are the five cyclones side by side. The airflow column is each maker’s own figure, and the method matters: Shop Fox and Grizzly rate airflow at a stated static pressure, Laguna gives both a maximum and a figure with hoses connected, and JET gives a single number.
| Cyclone | Motor | Rated airflow (maker’s method) | Filter | Drum |
|---|---|---|---|---|
| JET JCDC-3 | 3 HP, 230V | 1,963 CFM | 99% at 2 micron | 66 gal |
| Laguna C|Flux:3 | 3 HP, 220V | 2,718 CFM max, 1,624 CFM with hoses | 1 micron | 46 gal |
| Shop Fox W1869 | 3 HP, 220V | 1,941 CFM at 2.9″ SP | 99.9% at 1 micron | 35 gal |
| Grizzly G0441 | 3 HP, 220V | 1,654 CFM at 2.0″ SP | 99.9% from 0.2 to 2 micron | 55 gal |
| JET JCDC-2 | 2 HP, 230V | 1,538 CFM | 2 micron | 30 gal |
Already own a single-stage collector? A cyclone separator in front of it gets you much of the chip separation for far less money, although not the canister filter or the drum.
Editor's Choice3 HP cyclone collector
JET JCDC-3
JET Cyclone Dust Collector, 2-Micron Filter, 3 HP, 230V 1Ph (Model JCDC-3)
A 3 HP cyclone that moves 1,963 CFM, feeds a 66-gallon drum and runs three tools at once.
Check price on AmazonSpecs: JET
Best for
Serious home and semi-pro shops that want to buy once.
- Cyclone separation at 1,963 CFM
- RF remote with auto-shutoff timer
- Double-paddle filter cleaning
Skip it if
You only have a 115V outlet or a small shop: it is 230V only and large.
- 230V only, needs a dedicated outlet
- Premium price and a large footprint
Read full review
The JET JCDC-3 is the big bad wolf of cyclone dust collectors, and it earns that title completely. With a 3 HP motor producing an incredible 1,963 CFM, it handles three tools simultaneously while shrugging off extended duct runs without breaking a sweat. The 8″ main intake ships pre-assembled with three 4″ branches, giving you real flexibility from day one. The cyclone separation routes heavier debris down into the massive 66-gallon drum while fine particles travel up to the directly-mounted high-efficiency filter, which traps 99% of 2-micron particles and 86% of 1-micron particles. I’ve run aggressive sanding sessions through this machine and the shop air stays genuinely pristine, no haze, no residue, no dusty surfaces.
Most cyclone airflow3 HP cyclone collector
Laguna C|Flux:3
Laguna C|Flux:3 3 HP Cyclone Dust Collector
The cyclone with the highest rated airflow here: 2,718 CFM maximum and 1,624 CFM with hoses connected, through a 1-micron cartridge.
Check price on AmazonSpecs: Laguna
Best for
Larger shops with ducting to several machines that want the most cyclone airflow on single-phase power.
- Publishes airflow with hoses connected, not just a maximum
- 1-micron cartridge with 102 sq ft of media
- 46-gallon drum with a fill window
Skip it if
Your ceiling is low or you have no 30 A, 220V circuit: it stands 89 inches tall.
- Needs a 30 A, 220V circuit and a plug
- 89 inches tall and 373 lbs
Read full review
The Laguna C|Flux:3 is the cyclone for a shop that has outgrown one machine on one hose. Laguna rates its 3 HP, 220V motor and 15.5″ fan at 2,718 CFM maximum and, unusually, also publishes a shop-setting figure of 1,624 CFM, measured with hoses connected, which is much closer to what you will see at the end of a duct. Maximum static pressure is 11.2 inches. The 8″ inlet ships with a splitter to three 4″ ports, and Laguna recommends a blast gate on each one so that only the machine you are using pulls air.
Filtration is a 1-micron cartridge with 102 sq ft of media, cleaned with a dual-paddle crank, above a 46-gallon octagonal drum with a window that shows the fill level. A remote control is included. Plan the space and the wiring before you order: Laguna lists it at 48″ x 28″ x 89″ assembled and 373 lbs, the manual calls for a 30 A minimum circuit at 220V (the motor draws 22 A), and the cord comes without a plug. Laguna’s noise figure is 88 dB at 9.8 feet, so hearing protection is part of the deal, as it is with any 3 HP collector.
3 HP portable cyclone
Woodstock Shop Fox W1869
Shop Fox 3 HP Portable Cyclone Dust Collector W1869
A 3 HP cyclone on casters, so you get two-stage separation without a fixed installation.
Best for
Shops that want 3 HP cyclone power but need to move the unit.
- Cyclone pre-separates heavy debris
- Can be moved around the shop
- Handles several tools and long ducts
Skip it if
Your shop is small: it stands 82 inches tall and weighs 348 lbs.
- Premium price tier
- Larger than single-stage units
Read full review
Shop Fox steps up to the cyclone tier with the W1869, a 3 HP portable cyclone dust collector that brings serious two-stage separation performance to shops that need high-capacity extraction with the flexibility to move the machine around. The 3 HP motor delivers robust suction that handles demanding multi-tool setups and extended duct runs without flinching. The cyclone design separates the bulk of heavy debris before it ever reaches the filter, dramatically extending filter life and keeping suction consistent over long sessions. Portability is a genuine strength here: the W1869 is designed to move, which sets it apart from bulkier stationary cyclone installations at this power level. Shop Fox backs the W1869 with a 2-year warranty.
The numbers from the Shop Fox manual: 1,941 CFM at 2.9 inches of static pressure (a more honest way to rate airflow than an open-inlet maximum), 11 inches of maximum static pressure, an 8″ main inlet with an adapter for three 4″ hoses, a canister filter rated at 99.9% at 1 micron with 45.2 sq ft of media, and a 35-gallon steel drum. It runs on 220V and needs a 30 A circuit; the cord comes with an L6-30 plug. Plan for the size too: 82″ tall and 348 lbs.
3 HP cyclone collector
Grizzly G0441
Grizzly Industrial G0441 3 HP Cyclone Dust Collector
A 3 HP cyclone with 1,654 CFM, a 55-gallon drum and a filter rated 99.9% at 0.2 to 2 microns.
Check price on AmazonSpecs: Grizzly
Best for
Active home and small pro shops that want cyclone performance.
- Cyclone separation with a fine filter
- Remote switch and timed shutdown
- Blower rotates 360° for ducting
Skip it if
You want a long warranty: JET and Powermatic give 5 years.
- 1-year warranty
- Bulkier than single-bag units
Read full review
The Grizzly G0441 is exactly what the name implies: a beast. A 3 HP motor drives a 15.5″ steel impeller that delivers 1,654 CFM through the main 8″ intake, which you can adapt into various branching configurations to serve multiple machines at once. The cyclone system routes heavier debris directly into the 55-gallon steel drum while finer particles travel up to the cartridge filter, which traps 99.9% of particles from 0.2 to 2 microns: your shop air stays crystal-clear no matter what you’re running. Additional features include reduced vibration via a vertical motor support, 360° blower rotation for easy duct system connection, an automatic timed shutdown, and a remote control. This machine is powerful enough to run as a permanent stationary installation but still mobile enough to relocate if needed. If you’re ready to step up to cyclone-level dust collection without jumping straight to the industrial tier, the G0441 is the way to go. Comes with a 1-year warranty.
2 HP cyclone collector
JET JCDC-2
JET Cyclone Dust Collector, 2-Micron Filter, 2 HP, 230V 1Ph (Model JCDC-2)
Two-stage cyclone separation from a 2 HP motor, with a 30-gallon drum and an RF remote.
Check price on AmazonSpecs: JET
Best for
Growing shops that want a cyclone below the JCDC-3.
- Cyclone keeps suction steady
- Double-paddle filter cleaning
- RF remote, up to 50 ft
Skip it if
You only have a 115V outlet.
- 230V only
- Costs more than single-stage JETs
Read full review
The JET JCDC-2 is a compelling step up for any shop owner who wants two-stage cyclone separation without jumping all the way to the top of the line. The cyclone’s two-stage separation provides more working CFM than comparable horsepower single-stage units, so your tools get consistently strong suction throughout long sessions. Heavy debris is captured in a 30-gallon drum with quick-release levers and independent casters, while fine dust goes up to a pleated canister that JET sells as a 2-micron filter. The double-paddle manual cleaning system quickly cleans the pleated filter between sessions, keeping performance consistent without a lot of fuss. An included RF remote control works from up to 50 feet away: a genuinely useful convenience in a larger shop. The 2 HP motor, premium cyclone build quality, and JET’s 5-year warranty make the JCDC-2 a smart investment for the serious hobbyist or semi-professional shop. If you want to pair this with great stair or furniture sanding, I’d point you toward the Best Sanders for Stairs 2026 guide as a natural companion read.
Best Single-Stage Dust Collectors
A single-stage collector pulls chips and dust straight through the impeller into a bag or a canister. It costs less, stands shorter and moves around more easily than a cyclone, and the 1 to 1.5 HP models below run on a standard 115V outlet. JET’s Vortex Cone and Powermatic’s TurboCone add a cone to drop more chips before they reach the filter, which helps, but they are still single-stage machines. The spec to check hardest is the filter: a 30-micron bag sends fine sanding dust straight back into the shop, so for sanding look for a 1 or 2-micron canister or bag. Here are my top picks in this category for 2026.
Short on floor space or limited to a standard outlet? My guide to the best dust collector for a small shop narrows the field to 115V and wall-mount units and covers circuit sizes in detail.
Best single-bagSingle-stage collector
JET DC-1200VX-BK1
JET Vortex Cone Dust Collector, 30-Micron Bag Filter, 2 HP, 230V 1Ph (DC-1200VX-BK1)
A 2 HP Vortex Cone collector with a 30-micron bag, rated 1,200 CFM with filters installed, on a 230V circuit.
Check price on AmazonSpecs: JET
Best for
Shops with a 230V circuit that want a 2 HP single-stage collector for chips and shavings.
- 2 HP motor with a Vortex Cone
- 1,200 CFM with filters installed
- Two 4 in inlets or one 6 in inlet
Skip it if
You only have a 115V outlet, or you sand a lot and want fine filtration.
- 230V only
- 30-micron bag: fine dust still gets through
Read full review
The JET DC-1200VX-BK1 is a single-stage collector for shops that have, or can add, a 230V circuit. It pairs JET’s Vortex Cone with a 2 HP motor and a 30-micron bag filter, and JET rates it at 1,200 CFM with filters installed through two 4″ inlets or one 6″ inlet. The Vortex Cone separates chips from the air stream so they settle into the bag instead of packing the filter, the motor is totally enclosed and fan-cooled for continuous duty, and the quick-connect bag has an elastic band for fast removal. It holds 5.3 cubic feet, rolls on swivel casters, stands 79″ tall on a 37″ x 28″ footprint and carries JET’s 5-year warranty for home use. The trade-off is the filter: a 30-micron bag stops chips but passes fine sanding dust, so pair it with an air cleaner or a finer bag if you sand a lot.
Best valueSingle-stage collector
Shop Fox W1685
Shop Fox W1685 1-1/2 HP Dust Collector
The value pick: 1,280 CFM from a 1-1/2 HP motor on a standard 110V outlet, with a Y fitting for two 4-inch hoses.
Best for
Budget-minded home shops that want real CFM without a 220V circuit.
- 1,280 CFM on a 110V outlet
- Two 4" intakes via the Y fitting
- 12" steel impeller
Skip it if
You want canister-grade filtration: look at a cyclone with a 1 or 2-micron filter, like the JET JCDC-2.
- Needs a 20 A circuit
- 2.5-micron bag, not as fine as a canister
Read full review
The Shop Fox W1685 is my value pick: the same steel body, bags and Y-fitting as Shop Fox’s 2 HP model, with a motor that runs on an ordinary outlet. Shop Fox rates its 1-1/2 HP, 110V motor at 1,280 CFM and 10.1 inches of static pressure, pulled through a main 6″ inlet with a Y adapter for two 4″ hoses. The 12″ radial-fin steel impeller takes the chips a planer or table saw throws at it, and the 19″ x 33″ upper bag filters to 2.5 microns while the plastic lower bag holds 5.4 cubic feet. It rolls on a steel base with casters, and Shop Fox backs it with a 2-year warranty. If you want real airflow for a one- or two-machine shop without wiring a 220V circuit, this is where I’d start.
Wall-mount collector
POWERTEC DC5371
POWERTEC 1 HP, 560 CFM Wall Mount Dust Collector with 1 Micron Dust Collector Bags (DC5371)
A 1 HP wall-mount unit with a 1-micron bag that frees up floor space in a small shop.
Best for
Small shops that want fine filtration off the floor.
- Mounts on the wall, floor stays clear
- 1-micron bag with window and zipper
- Runs on 120V or 240V
Skip it if
You need to run large machines or long duct runs.
- 560 CFM, one machine at a time
- Inlet grate needs regular checks
Read full review
If you’re working in a small hobby shop or a compact pro setup where floor space is genuinely precious, the POWERTEC DC5371 is the kind of wall-mount dust collector that quietly earns its keep every single session. I’m a big fan of units that get up off the floor and out of your way, and this one does exactly that: it mounts neatly to the wall with the included bracket and connects directly to your machines via a standard 4″ inlet port. The real standout for me is the 1 micron filter bag, which is a genuinely impressive filtration rating for a unit at this size and price point. That reusable bag features a built-in window so you can see at a glance when it’s time to empty, plus an easy-zip disposal system that keeps fine dust from billowing back into your breathing zone: a detail I really appreciate. Under the hood you get a solid induction motor running at 3,450 RPM with dual voltage capability (120V or 240V), delivering 560 CFM of airflow. POWERTEC’s Vortex Base design is also worth calling out: it channels airflow in a controlled, low-turbulence path that the brand says delivers up to 10% better dust-moving efficiency compared to earlier models. One thing to keep in mind: the 4″ side port has a built-in grate to protect the impeller, and POWERTEC recommends pulling the hose regularly to check for debris buildup around that port, which is a small but worthwhile maintenance habit. It is a genuine option for woodworkers who want capable, space-saving dust collection without a big footprint.
Portable 1 HP collector

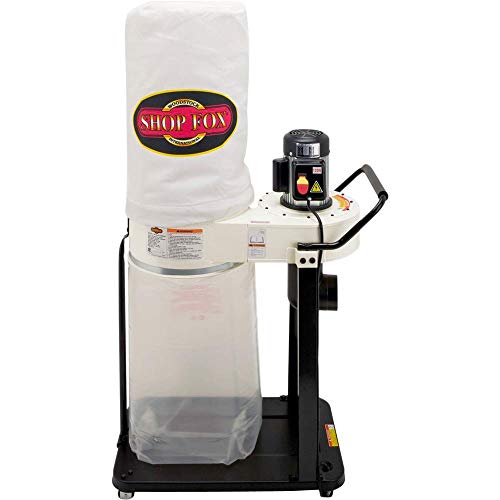

Woodstock Shop Fox W1727
SHOP FOX Portable W1727 1 HP Dust Collector
A light 1 HP collector with 800 CFM and a 2.5-micron bag that you can carry from tool to tool.
Best for
Beginners running one tool at a time in a small space.
- 800 CFM from 1 HP
- Runs on 120V
- Quick-disconnect bag clamps
Skip it if
You want to run two machines at the same time.
- Single 4" intake, one machine at a time
Read full review
The Shop Fox W1727 is extremely popular among hobbyists for good reason: it delivers a genuinely capable combination of power and performance at a very competitive price. The 1 HP motor (9A) pushes 800 CFM through its single 4″ intake, which is impressive for a machine at this price point. The 2.5-micron bag filters out even very small dust particles, so you’ll have clean air in your shop even after extended work sessions. Bag changes are quick and painless thanks to the snap-disconnect clamps. The whole unit is well-built while still being light enough to carry from machine to machine without effort: a real advantage in a compact shop. If you’re looking for your first dust collector and want something reliable, easy to use, and genuinely affordable, the W1727 is as close to a no-brainer as it gets in 2026.
Single-stage collector
JET DC-1100VX-5M
JET Vortex Cone Dust Collector, 5-Micron Bag Filter, 1-1/2 HP, 115/230V 1Ph (DC-1100VX-5M)
The Vortex Cone JET with a 5-micron bag instead of a canister, for chips and shavings more than fine dust.
Check price on AmazonSpecs: JET
Best for
Shops making more chips and shavings than fine sanding dust.
- Vortex Cone against clogging
- Dual 4" or single 6" intake
- Four casters
Skip it if
You sand a lot: a cyclone with a 2-micron filter, like the JET JCDC-2, filters finer.
- 5-micron bag, coarser than the 2-micron CK
Read full review
Like all JET products, the DC-1100VX-5M delivers outstanding quality and professional-grade performance in a package built to last. JET’s exclusive Vortex Cone technology is the standout feature here: it dramatically improves chip separation and prevents premature filter clogging for sustained performance across long shop sessions. The 1.5 HP motor produces 1,100 CFM through dual 4″ intakes or a single 6″ intake, and the high air velocity design is genuinely competitive at this power level. The 5-micron bag is easily removable thanks to the elastic band system, and the whole unit is backed by JET’s 5-year warranty. I’ll note that if you do heavy fine-dust sanding regularly, you might want to add a finer filter or an air cleaner, but for general shop dust, shavings, and chips, the DC-1100VX-5M is a superb performer. Four casters make it fully portable throughout the shop, which I always appreciate.
3 HP TurboCone collector
Powermatic PM1900TX-CK1
Powermatic TurboCone Dust Collector, 2-Micron Canister Filter, 3 HP, 230V 1Ph (PM1900TX-CK1)
The BK1 with 2-micron canisters instead of bags, which suits heavy sanding and finishing work.
Best for
Pros and serious hobbyists doing intensive sanding.
- 2-micron canister filters
- Infrared remote and digital timer
- TurboCone against clogging
Skip it if
You only have a 115V outlet.
- Premium price
- 230V only
Read full review
The PM1900TX-CK1 is the upgrade to the already impressive PM1900TX-BK1 reviewed above, and the key difference is a major one: the 30-micron bags are replaced with an exceptional 2-micron canister filter. That single change transforms this into a machine genuinely suited to the most demanding sanding and finishing work. The 3 HP motor delivers 1,782 CFM through three 4″ intakes off the main 8″ inlet, comfortably handling three machines simultaneously. The TurboCone keeps things clog-free and the filtration canisters are outstandingly effective: I’ve run aggressive sessions through this machine and the air quality stays pristine throughout. Every detail is executed with the precision you expect from Powermatic: the finish, the assembly, the paint, the swivel casters, the infrared remote control. The 5-year warranty seals the deal. This is Powermatic’s definitive double-collection dust collector for serious work, and the quality shows in every session. It pairs beautifully alongside tools covered in my Best Disc Sanders 2026 guide, where fine dust management is essential.
3 HP TurboCone collector
Powermatic PM1900TX-BK1
Powermatic TurboCone Dust Collector, 30-Micron Bag Filter, 3 HP, 230V 1Ph (PM1900TX-BK1)
Powermatic build and TurboCone separation at 1,754 CFM, but with 30-micron bags that let fine dust through.
Best for
General shop use without heavy fine-dust sanding.
- TurboCone prevents clogging
- Remote digital timer, up to 99 min
- All-metal ducting
Skip it if
You sand a lot: take the 2-micron PM1900TX-CK1.
- 30-micron bags, weak for heavy sanding
Read full review
The PM1900TX-BK1 delivers classic Powermatic quality at a competitive price point for the brand. The 3 HP motor runs at 1,754 CFM with three 4″ intakes branching from the main 8″ inlet: plenty of capacity for running three machines at once. Powermatic’s TurboCone technology efficiently separates larger debris from fine dust, preventing clogging and extending filter life. I’ll note upfront that the 30-micron filter bags are the limitation here: they handle general dust well, but during extended heavy sanding sessions some haze will develop in your shop air. If that’s a concern, step up to the PM1900TX-CK1 variant with canister filtration. That said, the build quality is as refined as anything I’ve tested: meticulous construction, excellent detailing, and that unmistakable Powermatic finish. The remote-controlled digital timer can be programmed for up to 99 minutes of run time, and the all-metal duct construction adds rigidity and improved airflow. Backed by a 5-year warranty.
Most power5 HP industrial collector
Grizzly G0672
Grizzly Industrial G0672 5 HP Industrial Dust Collector
3,961 CFM from a 5 HP motor and a four-port inlet, for shops running four machines at once.
Check price on AmazonSpecs: Grizzly
Best for
Pro shops that need maximum CFM from a fixed unit.
- Four machines at once
- 15" steel impeller
- 2.5-micron upper bags
Skip it if
You need to move it around, or your shop is small.
- 286 lbs, a stationary install
- 1-year warranty
Read full review
The Grizzly G0672 is an industrial-grade powerhouse in the truest sense. A 5 HP motor driving a massive 15″ steel impeller produces 3,961 CFM: one of the highest figures on this entire list. It comes with a 10″ main intake pre-assembled into a four-port manifold, handling four machines at once with ease even under demanding loads and long duct runs. The 2.5-micron upper filter bag keeps fine dust contained and the air in your shop clean and breathable. At 286 lbs, this is not a machine you’ll be moving around daily: I keep mine as a permanent stationary installation, which is entirely appropriate given the power output. The debris bags are robust, easy to empty, and affordable to replace when needed. The G0672 carries a 1-year warranty, which is shorter than JET and Powermatic equivalents, but at this price point for this level of raw performance, it’s a compelling value for professional shops that need serious extraction capacity. Whether you’re running Best Drum Sanders 2026 or other heavy stationary equipment, the G0672 can keep pace without breaking a sweat.
How to Choose the Best Dust Collector for Your Shop
With so many options across such a wide range of power, filtration, and price, choosing the right dust collector can feel overwhelming. I’ve broken it down into the key factors that actually matter, so you can make a confident decision without second-guessing yourself.
CFM (Cubic Feet per Minute)
CFM is the single most important performance spec on a dust collector. It tells you how much air the machine moves per minute, which directly determines how effectively it pulls dust away from your tools. As a general rule: a single hobby tool needs around 400 to 600 CFM, while larger stationary machines like a thickness planer or wide-belt sander may need 800 CFM or more. If you’re running multiple machines simultaneously, even if only one at a time, budget for the highest-demand tool in your shop, then add a margin for duct friction losses.
Read the CFM figure with care, because makers don’t measure it the same way. Shop Fox rates the W1869 at 1,941 CFM at 2.9 inches of static pressure, Grizzly rates the G0441 at 1,654 CFM at 2.0 inches, Laguna gives the C|Flux:3 both a 2,718 CFM maximum and 1,624 CFM with hoses attached, and many listings quote only one number with no conditions at all. Every foot of duct, every elbow and every length of flex hose adds resistance, so the airflow at your tool is always lower than the headline figure. Compare machines on the same basis, and favor a maker that tells you the static pressure behind the number.
Filtration Micron Rating
This is the spec that most beginners overlook, and it’s critically important, especially for sanding. Standard 30-micron bags let the finest and most hazardous particles pass right through back into your shop air. For any shop doing regular sanding, I strongly recommend a minimum of 2.5 microns, and ideally 2 microns or finer. The machines at the top of this list that filter down to 0.2 microns are giving you genuinely clean air: comparable to what you’d get with a proper respirator. Your lungs are worth the upgrade. This is something I always emphasize when woodworkers ask about Best Sheet Sanders 2026 setups as well: the sander and the dust collection have to work together.
⚠️ Important
Never assume that a shop that “looks clean” has clean air. Particles smaller than 10 microns are invisible to the naked eye: they float in your breathing zone for hours after sanding stops. A 30-micron bag on a high-CFM machine can create a false sense of security while sub-micron particles circulate freely. Always verify the filtration rating before purchasing.
Single-Stage vs. Cyclone (Two-Stage)
A single-stage collector pulls everything (chips, shavings, and fine dust) directly through the impeller and into a bag. It’s simpler and more affordable, but heavy debris wears on the impeller over time and clogs filters more quickly. A cyclone two-stage design uses centrifugal force to separate bulk debris into a drum before the airstream reaches the filter, resulting in consistently stronger suction, far less filter cleaning, and significantly longer filter life. For heavy or continuous use, especially sanding, the cyclone design is worth the investment. Already own a single-stage machine? You can add a cyclone separator in front of it and get much of the same benefit for far less money. My cyclone picks are compared above.
Power and Voltage
Most machines in the 1 to 2 HP range can run on a standard 115V outlet (though many can also be rewired for 230V). Anything above 2 HP almost universally requires a dedicated 230V circuit. Every cyclone on this list needs 220V or 230V, and the big ones need a heavy circuit: the manuals for the Grizzly G0441, Laguna C|Flux:3 and Shop Fox W1869 all specify a 30 A minimum. Check your shop’s electrical setup before purchasing: rewiring for 230V is often straightforward, but it’s a step worth planning for.
Portability vs. Stationary Installation
If your shop is small or you move equipment frequently, look for machines with four swivel casters and a manageable weight: the Shop Fox W1727 and JET DC-1100VX-5M are both excellent in this regard. For footprint, circuit size and wall-mount options in a tight space, see my guide to small shop dust collectors. If you have a dedicated shop space and plan a fixed duct installation, a heavier stationary unit like the Grizzly G0672 or the Laguna C|Flux:3 is no disadvantage at all. The cleanest setup combines a fixed dust collector with a ceiling-mounted shop air filtration system for the dust that escapes at the tool. For handheld sanders, a collector is the wrong machine: use a dust extractor for handheld tools or a shop vac set up for dust collection instead.
Warranty
Dust collectors are long-term investments. JET and Powermatic both offer 5-year warranties on their machines, which is exceptional at any price point and reflects genuine confidence in build quality. Shop Fox offers 2 years on most models, while Grizzly Industrial units typically carry 1 year. When you’re spending a significant amount on a premium machine, that warranty coverage is real peace of mind worth factoring into your decision.
How to Plan a Dust Collection System
A dust collector is only half of a dust collection system. The other half is the ducting, and a good layout decides how much of the collector’s airflow actually reaches the tool. Grizzly’s manual for its G0440 and G0441 cyclones includes a full design chapter, and it is one of the clearest free guides from a manufacturer; the steps below follow it.
Work Out the Airflow Each Machine Needs
Grizzly estimates the airflow a machine needs from the size of its dust port. Add up the ports on machines with more than one, and size the collector for the hungriest machine you will run, or for the two you will run together.
| Dust port | Approx. CFM needed | Typical machines (Grizzly’s averages) |
|---|---|---|
| 2″ | 100 | Miter saw, router table, small disc and belt sanders |
| 3″ | 250 | 7″ to 9″ belt sanders |
| 4″ | 400 | Table saw, bandsaw, 6″ jointer, 13″ planer, edge sander; drum sanders under 24″ have two |
| 5″ | 600 | 8″ to 12″ jointer, small wide-belt sander |
| 6″ | 850 | 14″ to 20″ planer |
Keep Ducts Short, Straight and Mostly Rigid
Grizzly’s layout rules are simple: put the machines that make the most dust (planers and sanders) closest to the collector, keep the main line and branches as short as possible, use as few changes of direction as you can, and make the ones you need gradual. Flex hose is the expensive part of a run. In Grizzly’s own static-pressure tables, a foot of 4″ flex hose loses close to four times as much pressure as a foot of 4″ rigid pipe, so use flex only for the last short drop to the machine. For small and medium shops, Grizzly suggests a main line the size of the collector’s inlet and branches the size of each machine’s port, with nothing under 4″ until just before the port.
Put a Blast Gate on Every Branch
A blast gate right after each branch lets you send all the suction to the machine you are using. Laguna gives the same advice for the three 4″ ports on its C|Flux splitter. With a powerful collector, Grizzly notes that leaving a second gate open can help and lets you run two machines at once, so experiment with your own system.
Ground Plastic Duct and Mind Where the Collector Sits
Laguna’s C|Flux manual warns that plastic dust lines build up static as chips pass through, and that a spark, although rare, can start a fire, so it says to ground every plastic line with a grounding wire. The same manual suggests putting a permanently installed collector away from the working area, or in another room equipped with a smoke detector, to cut your exposure to fine dust. Empty the drum and bags before they fill: fine dust building up around a collector is a fire risk of its own.
Handheld Sanders Need a Different Machine
A collector moves a lot of air at low pressure, which suits 4″ ports on stationary machines and doesn’t suit the small hose on a random orbital sander. For sanders and routers, use a dust extractor or a shop vac set up for dust collection, and keep the collector for the table saw, planer and drum sander.
🏆 The Verdict
Of the machines on this list, the JET JCDC-3 is the best dust collector overall for a serious home or semi-pro shop, and in my testing it was the clear overall winner. Its 3 HP cyclone motor, 1,963 CFM rating and a filter JET rates at 99% of 2-micron particles make it the most complete package here. The 66-gallon drum, auto-shutoff timer, RF remote control, and JET’s 5-year warranty make it a buy-once, keep-forever investment that I recommend without hesitation. For budget shoppers, the Shop Fox W1685 delivers outstanding value: 1,280 CFM and 2.5-micron filtration on a standard 110V outlet, at a fraction of the cost of the cyclone units. For a larger shop building a full dust collection system with ducting, the Laguna C|Flux:3 has the highest rated cyclone airflow here, and the Grizzly G0672 is the 5 HP single-stage option for four machines at once.
❓ Frequently Asked Questions
Which is the best dust collector?+
What is the most powerful dust collector available?+
What is the best dust collector for home use?+
Are dust collectors worth the money?+
What’s the difference between a dust collector and a dust extractor?+
What are common dust collector problems?+
What is the difference between a single-stage and a cyclone (two-stage) dust collector?+
What micron rating do I need for sanding dust, and why does it matter?+
I hope this guide helps you find exactly the right dust collector for your shop. Clean air and a tidy workspace make every project more enjoyable, and your health is genuinely worth investing in. If you’re also thinking about the tools that create the most dust in the first place, my guides on the Best Sanders for Stairs 2026 and Best Sheet Sanders 2026 are great next reads. Buying during the sales? The collectors and air cleaners worth watching are on my Black Friday woodworking deals list. If you have questions about any of the machines reviewed here, or if you’d like to share your own experience with a dust collector, drop a comment below: I read every one and love hearing from fellow woodworkers. Happy building, and thanks so much for reading!
Nice blog. It will surely help beginners to choose the Best Cyclone Dust Collector. The efforts you have put in to create the posts are quite interesting. Looking forward to seeing you soon in a new post.
Very nice review. Thanks!
Hi James,
Your review was the ultimate reason I decided to go with the Jet JCDC-3 and I just got it today. One thing I haven’t decided is whether or not to hook it up to an 8″ duct for as long as I can or if I should just stick with the three 4″ ports and run from there. What would your recommendation be? My shop isn’t all that big (24×16 or so) and I really do not run two machines at the same time. Of course, for my table saw, I do have a overhead arm as well but that would really be the only time I run “two” things at the same time.
Appreciate any insight you may have!
Hey Jonas – glad to know I was able to help you find a dust collector! The 4″ ports are a great fit for most situations – they’re versatile, effective and keep the machine handily portable. The 8″ duct solution is perfect if you’re going to work primarily on the same place (work bench or table where you do all the work, for example) or if you’re going to face some really serious debris (as you’d get from a drum sander and some saw work as well), without needing too many machines hooked up at once. That said, I think the 8″ duct is the way to go in your case – you’ll get unbeatable performance and effectiveness while the downsides (less mobility and less machines hooked up at once) won’t really have an effect on you. Hope that helps Jonas, let me know if you need any more guidance – I’ll be here!
Thanks for all the info James. Quick question for you…what is the difference between European cfm and us cfm. I am looking at the jet and laguna dc’s and noticed your comment on how the jet has more cfm but you quote the eu metric for one and the US metric for the other.
Thanks!!
Hey Greg, CFM is measured the very same way, from what I remember, although there’s a small difference due to Metric and Imperial measurements of temperature. In my calculations, 100 CFM in Europe translates into roughly 105.7 CFM in America and vice versa. I could be mistaken, but that’s how I learned the difference back in the day. Hope that helps and have a great day!
Hey James. I have a cabinet shop. Not too big , 3200 square feet. I am needing a dust collector with more cfms. I am looking at the Grizzly 10 hp, 4 bagger. I have a 43″ wide belt sander, sliding table saw, 15″ planer, and radial arm saw all hooked up to the vac system. What do you think?
Hey Kelly, if you’re talking about the Grizzly G0673 I think it’s a good fit for your setup. The machine is as solid as the Grizzly G0672 I show above, except it has double the bags and the HP to back it up. I’m sure the 5360 CFMs will make quick work of whatever you throw at it and it’s very affordable to boot. While i’d always lean for the more rugged construction and professional filtration of the Grizzly G0637 or the Jet JCDC-3, the power, simplicity and affordability of the G0673 is very attractive.
I have a 24×28 shop that is just me so I rarely run 2 machines at the same time. I need to upgrade my dust collection
I am torn between the Oneida V3000 with duct work vs staying mobile and going with the JCDC-3 or -2.
I joint/plane and drum sand all of my own rough cut lumber to start a project and build 15 or so pieces of furniture (bars, hutch, table, chairs, built-in cabinets, etc.) a year.
Any suggestions and comments would help/
Hey David, hope you’re having a great day! I understand why you’re torn – both of those choices are absolutely great machines. In my opinion, taking into account your shop’s size and your machine use, I’d go with a mobile solution for the added versatility and effortless installation. The JET JCDC’s you mentioned are an excellent choice (truly top-notch quality) but you can also take a look at the Powermatic PM1900TX-CK1 if you want to save some money (fantastic performance for the price). Hope this gives you some guidance and I wish you the best of luck with your woodworking projects!
Thanks for the info. I would be interested in noise also. Which is quieter?
It’s my pleasure to help Kevin! When it comes to noise, it depends a fair bit on the power but the quietest units are the JET ones (JCDC-3 is rated at only 76 dB and both the DC-1100VX and DC-1200VX are in the 70-80 range as well, for example) while the ShopFox/Grizzly units tend to be a bit louder (around 87 dB) and the Powermatic ones strike a balance between both (75 to 90). Hope that helps – have a great weekend!
Regarding the jet JCDC-3 what does it mean in the specs (found on website) when it says cfm eu vs cfm us? And how does this jet compare to the grizzly G0862?
Hey Dave, great question. The US and the EU use different measuring methods, hence the differing versions shown on the website (be sure to keep this in mind when doing comparisons). The JCDC-3 and the G0862 have similar power and the same intake size although the JET has a larger dust canister, better remote control, better craftsmanship, an easier to use modern design and it’s also quieter, among a few other improvements. The G0862’s price still makes it a solid choice though. Hope that helped and have a great one Dave!
I’m running 2 Pistorius 14″ double miter saws. Will the Jet JCDC-3 handle good dust collection when both of these saws are running at the same time?
Hey Donald, glad you asked! Even though miter saws are real debris makers, the Jet JCDC-3’s raw power coupled with its anti-clogging cyclone action will successfully take on the two saws at once and keep your shop nice and clean. Plus, you’ll still have room for one more tool if you want, such as a sander or whatever else you may need. If you’re thinking about expanding your arsenal to something like 4 saws in the future, you can also get the Grizzly G0637 Cyclone collector instead, it’s equally as superb for handling heavy debris makers but will be able to take on an extra tool on top of it all.
Hope that helped Donald, thanks for stopping by!
I have a small shop. Three car garage which the third garage is storage area, & the other two are for cars. To do any kind of work both cars have to be parked across the street to not get saw dust all over them. So all I’m using is a 5gal shop vac that I hook up to table saw to keep from making a big mess. That works about 90% better than before. When done for the day, just use my shop vac to blow all dust into smaller area & then just vacuum it all up. I empty my shop vac every Friday because it is FULL.
Can you make any recommendations of which Air Filtration System should do the job for a small area.
Thank You for your help.
Hey Robert, I do have two great choices for you – the JET AFS-1000B and the cheaper but still solid WEN 3415T. They’re two of the finest air filtration systems I’ve used so far and I can’t recommend them enough. I really have to write a full article on them, I’ll be sure to get on it soon enough.
Thanks for stopping by and have a great week!
James, Out of curiosity, how would you rate Onieda cyclones against the ones you’ve reviewed here? I have been under the impression that Onieda is the king of cyclones. Is this a bad impression? I’ve got a one-man shop with some big machines. 20″ planer, 30″ double drum sander, CNC, etc. I plan 500 bd ft of lumber in one session getting ready to build cabinets and furniture. After planing, the lumber goes thru the drum sander. I will run the dust collector for 8 to 10 hours a day. Is this asking too much for the Jet machine? I don’t have 3 phase power, only single phase. Thank you sir!!
Hey Don, thanks for the great question! I very much enjoy Oneida products, especially their dust deputy cyclone separator. Their actual dust collectors are outstanding too (I’ve tried the 3HP Gorilla) and their customer support is probably the best I’ve ever had but I feel that the other options manage to offer better value for the price. Their VS 3000 model which is comparable to the JET JCDC-3, for example, is around $700 more for nearly the same power (although the cone design and noise are different) and with a smaller dust bin. If you aren’t worried about getting the best bang for the buck though, you really can’t go wrong with Oneida – they’re worthy of their superb reputation and they last forever.
Now, with just single phase power it’s an even tougher choice (Jet JCDC 1.5HP or the Oneida 1.5HP Mini Gorilla) but you’ll be extremely well served by either brand. Hope that helped Don – I’ll be here if you need anything else!
It was hard to put down the dollar for the Jet JCDC-3 James but I trusted your recommendation enough to do it. COULDN’T BE HAPPIER. After so many disappointing machines, this one is like the holy grail of quality, can’t believe I was able to work without it. THANK YOU!
That’s what I like to hear Jordan, glad to know you like it! It is without a doubt a fantastic dust collector, you truly get what you pay for. Thanks for stopping by!
Well I never thought that a dust collector could be so darn efficient. Bless your heart James, the machine made working at my shop much more comfortable and clean. I got the Jet Cyclone!
Wonderful choice Bobby, these things really make a world of difference!
An outstanding share James! Thanks to you I was able to make my mind, got the Jet JCDC for my home shop and that great Shop Fox W1 for my dad since his shop’s a bit smaller (it was his birthday!). I was blown away and my dad couldn’t be happier either haha – WL
I’m glad you liked them Will, I hope your dad had an excellent birthday! Thanks for stopping by and enjoy.
Thanks for the detailed reviews! How do you think the Jet compares to similar Laguna models?
Hey Nate, Laguna has some beautiful dust collectors – both in looks and performance. Their “C|Flux: 3 Cyclone Dust Collector” is the rival to Jet’s JCDC-3, and it’s a worthy adversary. Although they have equal build-quality and Horsepower, I think the Jet machine has an edge over it for two reasons. First, the Jet’s slightly cheaper (around $200 less) and secondly the Jet’s JCDC-3’s sucking power is higher (1963 CFM vs Laguna’s 1624 CFM). They are both fantastic machines (and brands), and their dust collectors are very similar but Jet takes the win in my opinion. Thanks for the great question Nate!
My pop told me the same thing, “The Jet vac is unbeatable!” haha. Time to get myself one!
Just sent you an email with a picture showing my new dust collector in my shop, it’s a beauty! Couldn’t have done it without your guidance, you are truly a great contributor to the woodworking community. Happy new year James, you deserve the best!
Just saw the picture and it looks beyond great, the fact that the Powermatic’s color matches your other machines is the cherry on top. I’m glad I could help and have a fantastic new year as well Cooper!
Hey James, a month ago I decided to get the Jet JCDC 3 thanks to your recommendation. The performance left me speechless so I had to come back to thank you! It highly improved my shop and work experience as both the surfaces and air cleanliness are perfect. You’re the best.
Glad to hear it Paul! Thanks for coming back to leave the kind words, it’s always fantastic to know I’ve helped.
Just what I needed. Thanks for the help James, that double Powermatic beauty (the CK1) will fit right in my shop. Always loved their products.
Hey John, you’re welcome! The PM1900TX-CK1 is beyond great, you’ll feel right at home when using it, it’s a Powermatic in every way. Enjoy!
I remember when I emailed you about which dust collector to get for my small shop, you mentioned that awesome 2HP ShopFox. I’ve loved every moment with it, runs beautifully and it’s nice to see you put out a quality article to help people in the same situation I was in. Thank you James!
My pleasure Kyle, I’m really glad I was able to help. Thanks for stopping by again to share your thoughts, I appreciate it!
